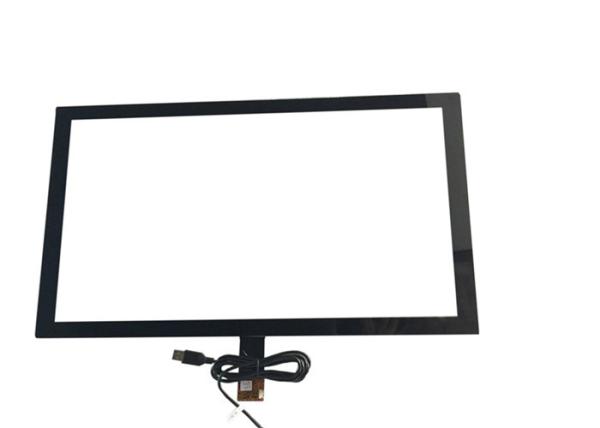

Capacitive Multi Touch Panel with 21.5inch low-cost USB port touch screen
Capacitive Touch Screen:
Capacitive touch screen is very different with traditional resistive touch screen. When the resistive touch screen works, you can only judge a touch point. And if there are two or more touch points, you can not make the right judgments. So the resistive touch screen applies only to judge a few simple actions such as click, drag and drop. The capacitive multi-touch screen can decompose the user's touch into colleting multi-point signal and determining the significance of the signals, and complete the judgments of complex action. Moreover, you can feel it when you lightly touch the projected capacitive touch sensor panel. Better durability, more than 90% light transmission rate, high transparency than the traditional resistive touch screen are the advantages of our products.
Product Specification:
| Size: | 21.5inch |
| Total Thickness: | 2.7±0.3mm |
| Outline of Cover Lens: | 525*312±0.2mm |
| Outline of ITO Sensor: | 495.6*285.85±0.3mm |
| Viewing Area: | 478*269.6±0.3mm |
| Active Area: | 479.14*270.61±0.3mm |
| TP Structure: | G+G |
| Controller: | ILITEK, WEIDA, EETI, Silicon Works etc.(Optional) |
| Cover glass thickness: | 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Optional) |
| Cover glass treatments: | AG, AR, AF, AE (Optional) |
| CTP interface: | USB |
| Operating system: | Win7, Win8, Win10, WCE, Android, Linux, XP |
| Working temperature and humidity: | -20°C~70°C,20~85% RH, non-condensing |
| Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
| Warranty: | 1 Year |
Delivery Time:
Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days
FAQ:
Q. Are you a factory or trading company?
A: We are a factory.
Q. Does your products have CE&Rohs certificates?
A: Yes.
Q. What’s the shipping method?
A: By sea / air / express, which methods to be used on the basis of customer’s requirements.
Q. What’s the payment methods?
A: T/T, 30% deposit before production, the balance before shipment.
Q. What size of touch screen can you manufacture?
A: 3.5” to 65”, the bigger size are researching and developing.
Application:
- Touch Screen All in one Computers
- Touch Screen laptop
- POS Machine
- Industrial Control industry
- Touch Monitor
- Information Kiosks
- Gaming, Lottery ect
- Multimedia marketing
- Banking / Fanancial System
- Touch Table
Technical Drawings:
Competitive advantages:
1. We have 23-year experience in designing and manufacturing touch panels.
2. We have strong research team for both software and hardware and provide before and after-sale service.
3. We cooperate with excellent customers and suppliers.
4. We have long-term cooperation with excellent IC suppliers all over the world.
5. We have good guarantee for product quality and lead time.
6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.
